MACHINE ASSISTANCE
LATTISSIMA ONE
First use or after a long period of non-use
Coffee preparation
Daily care
Descaling
Safety Precautions
Programming coffee quantity
Restoring quantity to factory settings
Preparing Cappuccino-Latte Macchiato
Hand washing of Rapid Cappuccino System
Assembling / Disassembling of Rapid Cappuccino System
First use or after a long period of non-use
- NOTE: to turn off the machine, press Lungo and Espresso button for 2 seconds

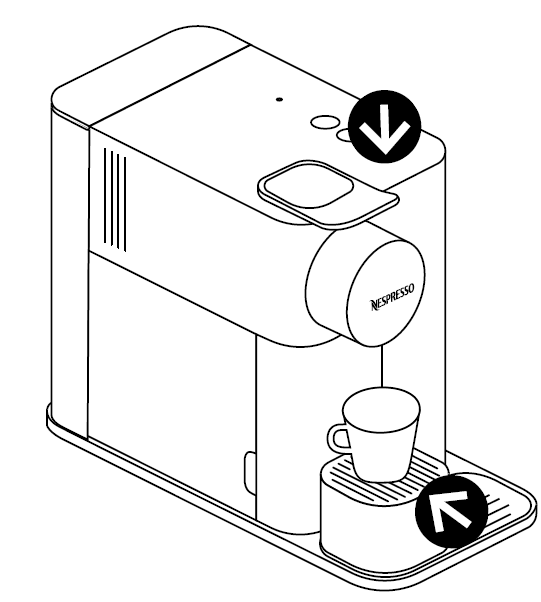

- When unpacking the machine, remove the plastic film, water tank, drip tray, and capsule container. Adjust the cable length and store the excess in the cable guide under the machine.

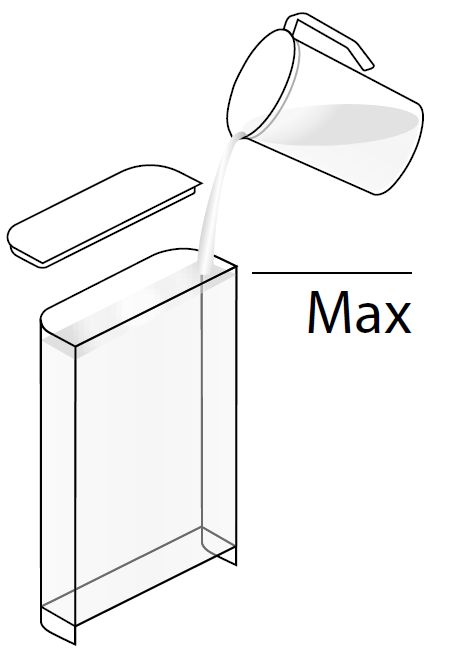

- Rinse the water tank before filling with potable water up to maximum level. Plug machine into mains.

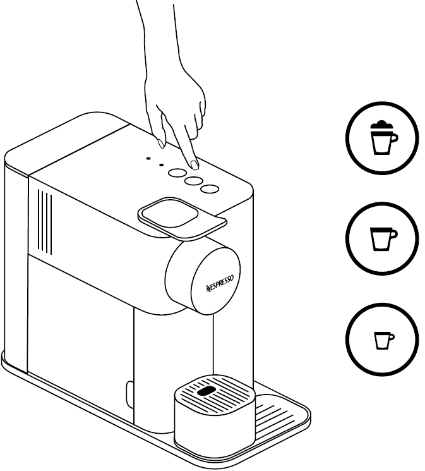

- Switch the machine on by pressing any of the three buttons: -Blinking lights:heating-up (25 sec( - Steady lights: ready
- Rinsing: place a container under coffee outlet and press the Lungo button. Repeat three times. NOTE :Machines are fully tested after being produced. Some traces of coffee powder could be found in rinsing water.

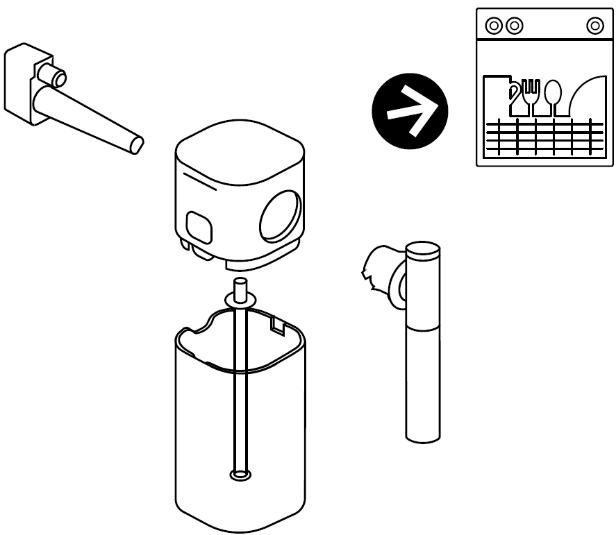

- Disassemble the Rapid Cappuccino System and clean all 5 components in the upper level of your dishwasher. In case a dishwater is not available, refer to the “Hand Washing of Rapid Cappuccino System” section.
Step 1 of 6
First use or after a long period of non-use
Coffee preparation
- NOTE: during heat up, you can press any coffee buttons. The coffee will then flow automatically when the machine is ready.

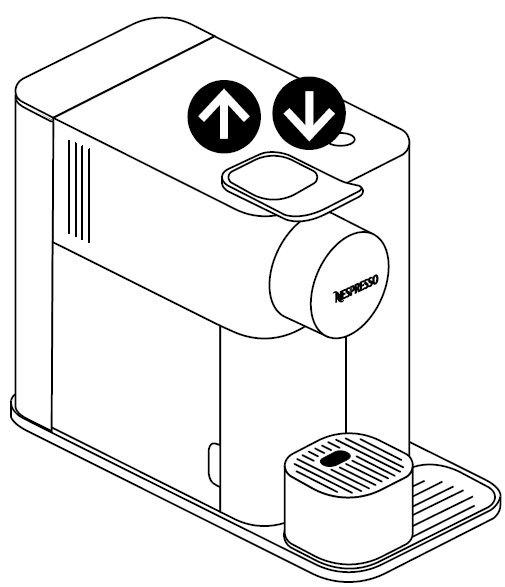

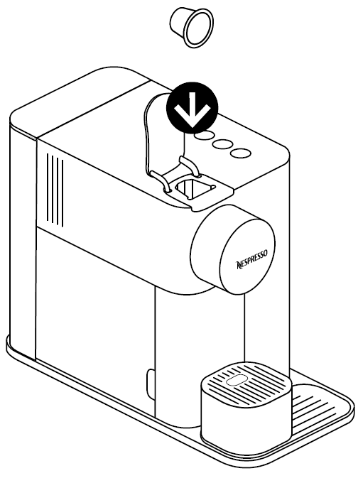

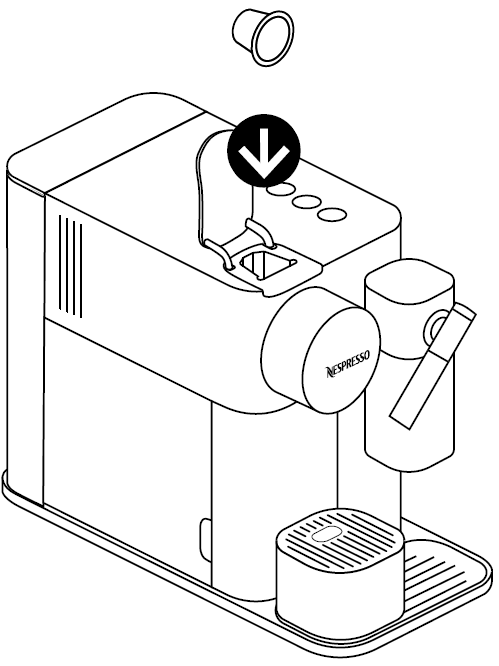

- Lift the lever completely and insert the capsule
- Close the lever and place a cup under the coffee outlet.

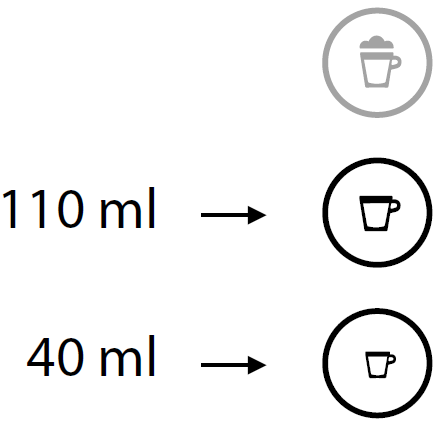

- Press the Espresso (40 ml) or the Lungo (110 ml) button – Preparation will stop automatically. To stop the coffee flow or top up your coffee, press again.
- 4. Lift and close the lever to eject the capsule into the used capsule container.
Step 1 of 5
Coffee preparation
Daily care
- NOTE: Do not use any strong cleaning agent or solvent cleaner. Use a clean damp cloth and mild cleaning agent to clean the surface of the machine. Do not put any machine components in dishwasher, except the Rapid Cappuccino System components.
- Lift and close the lever to eject the capsule into the used capsule container Remove drip tray, capsule container. Empty and rinse. Remove water tank. Empty, rinse it before filling with potable water.

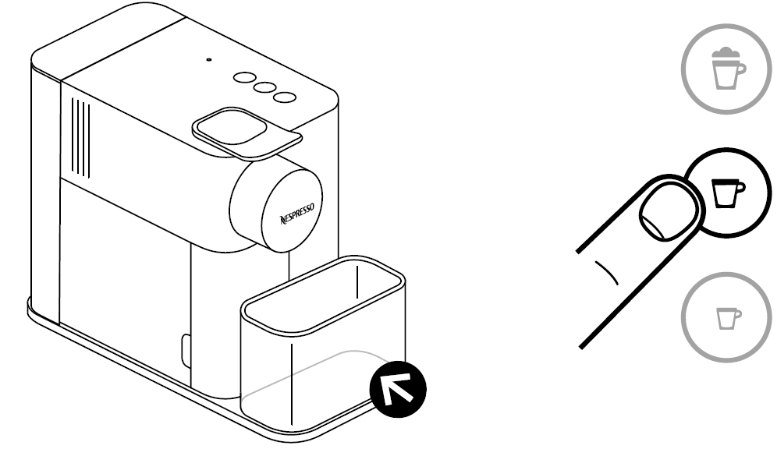

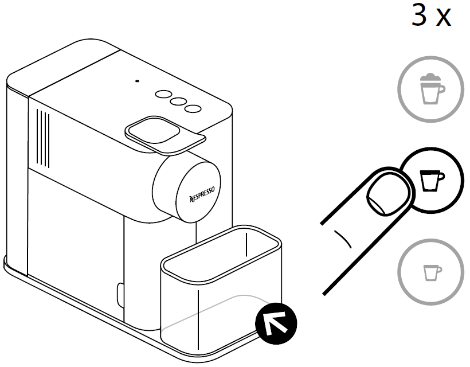

- Place a container under coffee outlet and press the Lungo button to rinse.

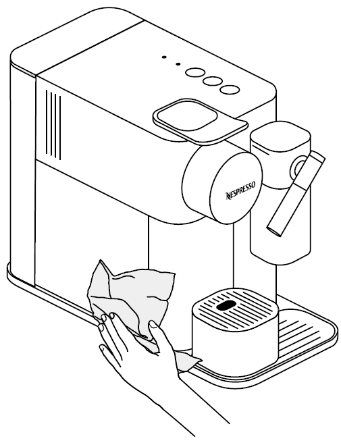

- Clean the coffee outlet and machine surface with a clean damp cloth.
Step 1 of 4
Daily care
Descaling
- NOTE: * Descaling time is approximately 20 minutes. * To ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as the first day, follow the below process.
- Descale the machine when descaling alert shines orange in ready mode.
- Lift and close the lever to eject any capsules in the used capsule container.

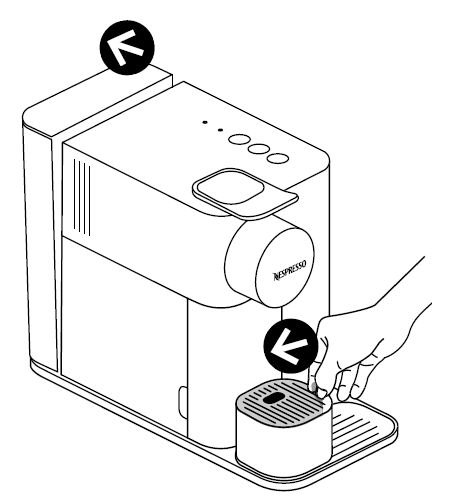

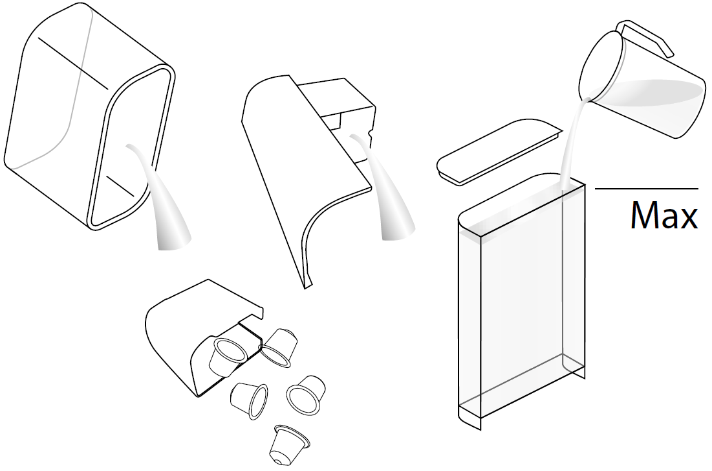

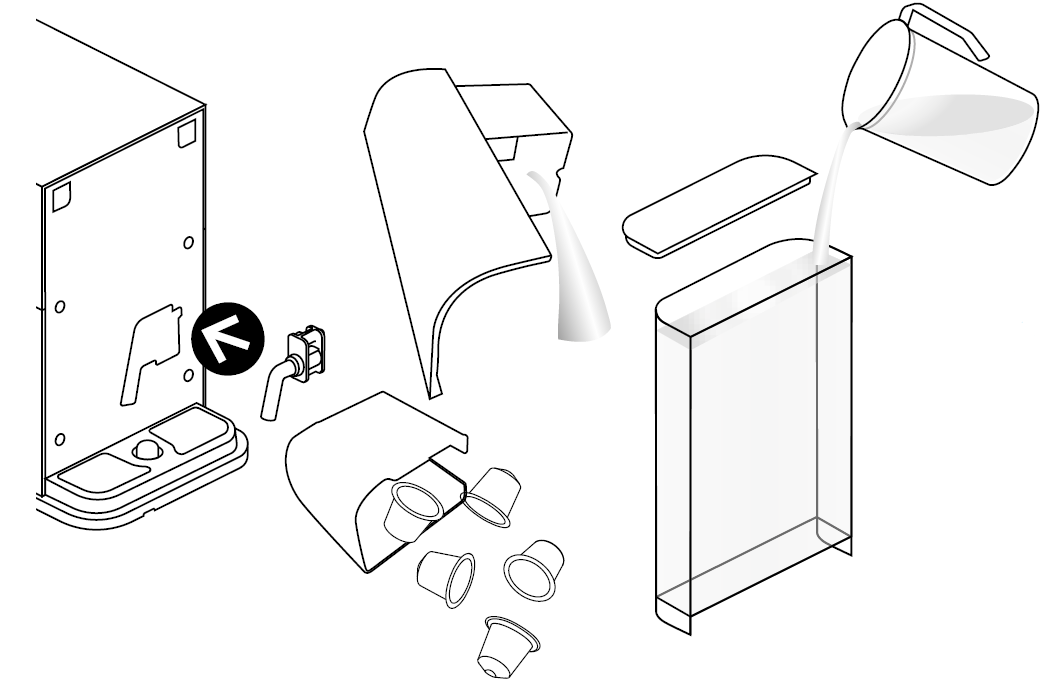

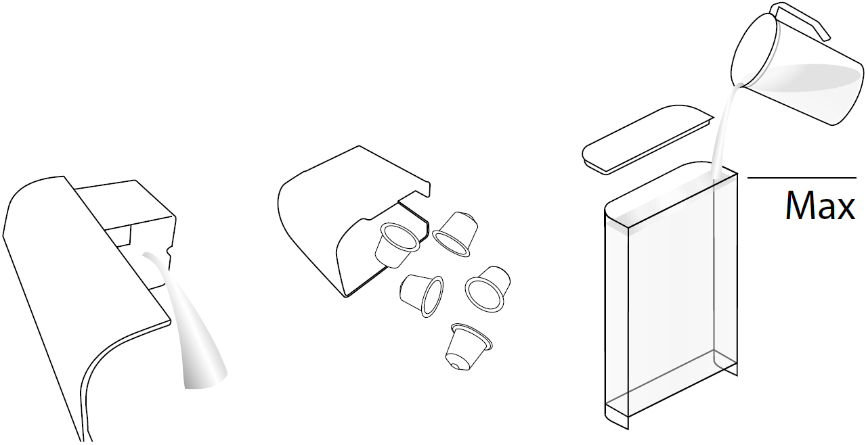

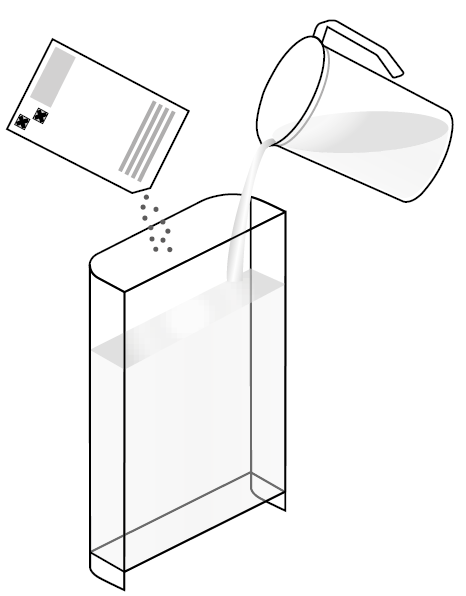

- Empty the drip tray and the used capsules container. Fill the water tank with 100 ml of Nespresso descaling agent and 500 ml water.

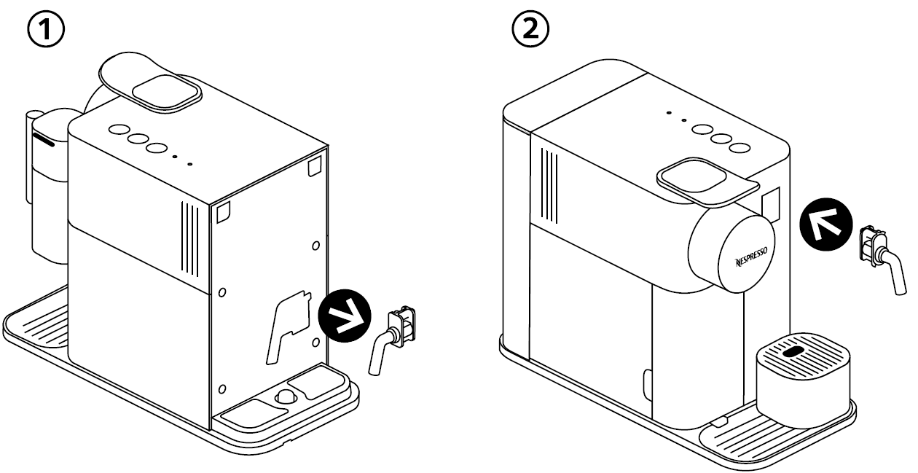

- Take the descaling pipe situated at the back of the machine and plug the descaling pipe into steam connector of machine.

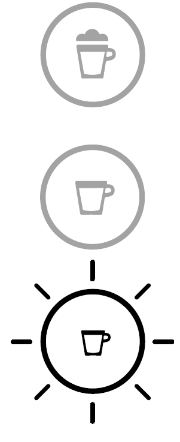

- The machine enters the descaling mode. The descaling alert blinks orange during the entire descaling process. The Espresso button illuminates white.

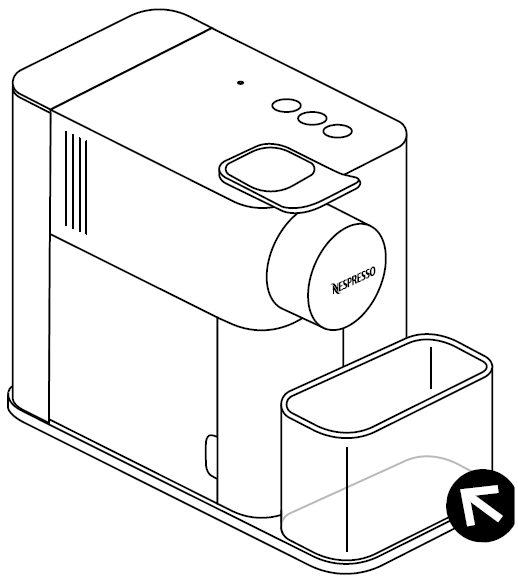

- Place a container with a minimum 1 litre capacity under both the coffee outlet and under the descaling pipe nozzle.

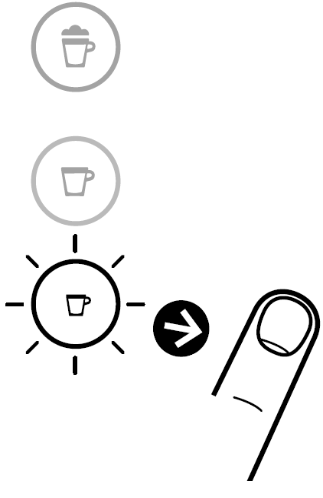

- Press the Espresso button. Descaling product flows alternately through the coffee outlet, descaling pipe and drip tray. When the descaling cycle is finished (water tank runs empty), the Espresso button shines.
- Empty the used capsules container, drip tray recipient and container, rinse out and fill the water tank with fresh potable water up to level MAX.
- Press the Espresso button again. The rinsing cycle continues through the coffee outlet, descaling pipe and drip tray until the water tank turns empty.
- Once the rinsing process is finished, the machine switches off. Remove and store descaling pipe. Empty drip tray and used capsules container. Fill water tank with potable water.
- Clean the machine using a damp cloth. You have now finished descaling the machine.
Step 1 of 12
Descaling
Safety Precautions
- Do not touch surfaces that become hot during and after operation and descaling: descaling pipe and milk spout. Use handles or knobs.
- If coffee volumes higher than 150 ml are programmed: let the machine cool down for 5 minutes before making the next coffee. Risk of overheating!
- Water could flow around a capsule when not perforated by the blades and damage the appliance.
- Never use an already used, damaged or deformed capsule.
- If a capsule is blocked in the capsule compartment, turn the machine off and unplug it before any operation. Call the Nespresso Club or Nespresso authorized representative.
- Always fill the water tank with cold, fresh drinking water.
- Empty water tank if the appliance will not be used for an extended time (holidays, etc.).
- Replace water in water tank when the appliance is not operated for a weekend or a similar period of time.
- Do not use the appliance without the drip tray and drip grid to avoid spilling any liquid on surrounding surfaces.
- Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild cleaning agent to clean the surface of the appliance.
- In case of an emergency: immediately remove the plug from the power socket.
- Only plug the appliance into suitable, easily accessible, earthed mains connections. Make sure that the voltage of the power source is the same as that specified on the rating plate. The use of an incorrect connection voids the guarantee. The appliance must only be connected after installation.
- The appliance is intended to prepare beverages according to these instructions.
- Do not use the appliance for other than its intended use.
- This appliance has been designed for indoor and non-extreme temperature conditions use only.
- Protect the appliance from direct sunlight effect, prolonged water splash and humidity.
- This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
- This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and they are supervised by an adult.
- Keep the appliance and its cord out of reach of children under 8 years of age.
- This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the device safely and understand the dangers.
- Children shall not use the device as a toy.
- The manufacturer accepts no responsibility and the guarantee will not apply for any commercial use, inappropriate handling or use of the appliance, any damage resulting from use for other purposes, faulty operation, non-professionals’ repair or failure to comply with the instructions.
- In case of an emergency: immediately remove the plug from the power socket.
- Only plug the appliance into suitable, easily accessible, earthed mains connections. Make sure that the voltage of the power source is the same as that specified on the rating plate. The use of an incorrect connection voids the guarantee. The appliance must only be connected after installation.
- Do not pull the cord over sharp edges, clamp it or allow it to hang down.
- Keep the cord away from heat and damp. If the supply cord or the plug are damaged, they must be replaced by the manufacturer, its service agent or similarly qualified persons, in order to avoid all risks.
- If the cord or the plug are damaged, do not operate the appliance. Return the appliance to the Nespresso Club or to a Nespresso authorized representative.
- If an extension cord is required, use only an earthed cord with a conductor cross-section of at least 1.5 mm2 or matching input power.
- To avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, stoves, ovens, gas burners, open flame, or similar.
- Always place it on a horizontal, stable and even surface. The surface must be resistant to heat and fluids, like water, coffee, descaler or similar liquids.
- Disconnect the appliance from the mains when not in use for a long period. Disconnect by pulling out the plug and not by pulling the cord itself or the cord may become damaged.
- Before cleaning and servicing, remove the plug from the mains socket and let the appliance cool down.
- To disconnect the appliance, stop any preparation, then remove the plug from the power socket.
- Never touch the cord and the plug with wet hands.
- Never immerse the appliance or part of it in water or other liquid.
- Never put the appliance or part of it in a dishwasher, except the Rapid Cappuccino System.
- Electricity and water together is dangerous and can lead to fatal electrical shocks.
- Do not open the appliance. Hazardous voltage inside!
- Do not put anything into any openings. Doing so may cause fire or electrical shock!
- The use of accessory attachments not recommended by the manufacture may result in fire, electric shock or injury to persons. Avoid possible harm when operating the appliance.
- Never leave the appliance unattended during operation.
- Do not use the appliance if it is damaged, has been dropped or not operating perfectly. Immediately remove the plug from the power socket. Contact the Nespresso Club or Nespresso authorized representative for examination, repair or adjustment.
- A damaged appliance can cause electrical shocks, burns and fire.
- Always completely close the lever and never lift it during operation. Scalding may occur.
- Do not put fingers under coffee outlet, risk of scalding.
- Do not put fingers into capsule compartment or the capsule shaft. Danger of injury!
- To clean machine, use only clean cleaning tools.
- When unpacking the machine, remove the plastic film and dispose.
- This appliance is designed for Nespresso coffee capsules available exclusively through the Nespresso Club or your Nespresso authorized representative.
- All Nespresso appliances pass stringent controls. Reliability tests under practical conditions are performed randomly on selected units. This can show traces of any previous use.
- Nespresso reserves the right to change instructions without prior notice.
- Nespresso descaling agent, when used correctly, helps ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as the first day.
- Descale according to user manual recommendations, or consult the descaling information by visiting the Nespresso website www.nespresso.com/descaling
Step 1 of 53
Safety Precautions
Programming coffee quantity

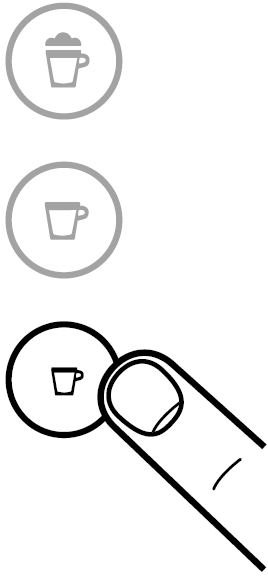

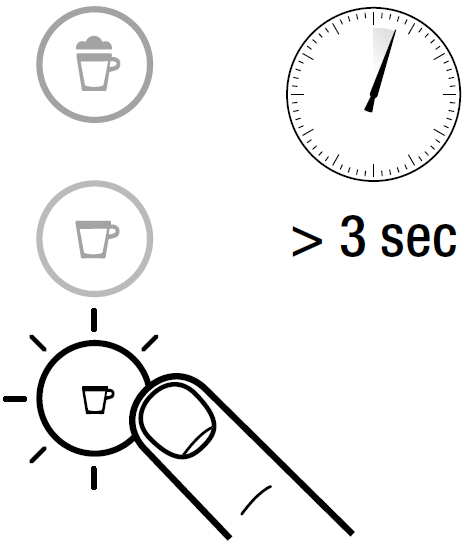

- Touch and hold Espresso or Lungo button for at least 3 sec to enter the programming mode. Brewing starts and button blinks fast.
- Release button when desired volume is reached. Coffee volume is now stored for the next coffee preparations. Button blinks 3 times to confirm the new coffee volume.
Step 1 of 2
Programming coffee quantity
Restoring quantity to factory settings
- NOTE: the Menu mode exits automatically after 30 sec if no actions are performed or can be exited manually by pressing milk button 3 seconds.
- Switch the machine ON. NOTE: remove milk jug.

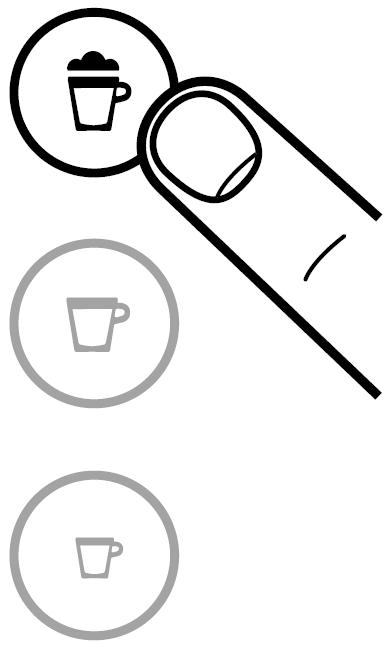

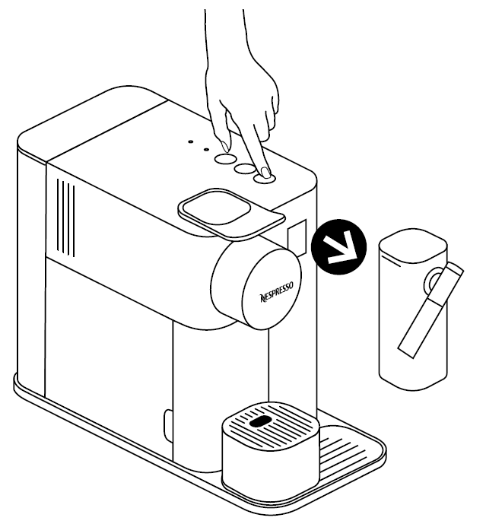

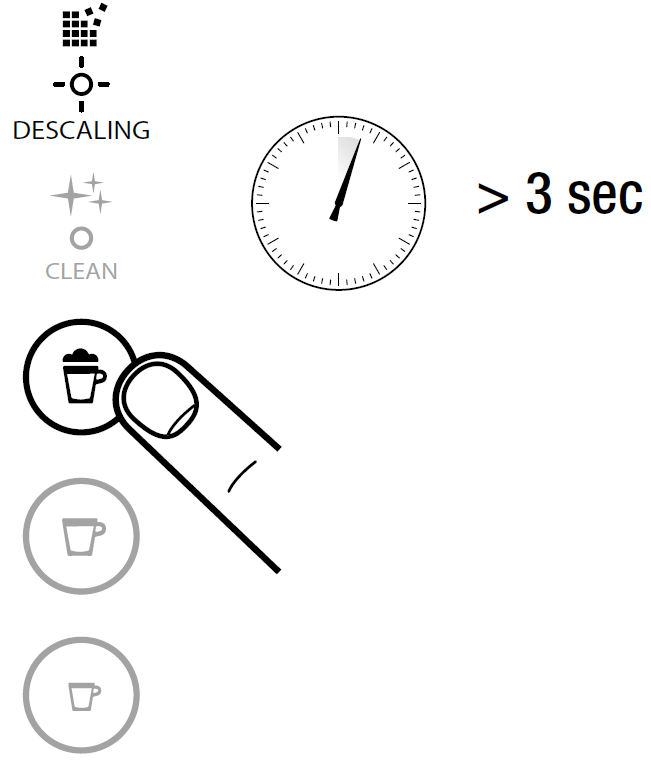

- Press the milk button for 3 seconds to enter Menu mode: descaling and clean alert start blinking.
- Press the milk button. The milk button blinks to indicate reset mode. Press it to confirm. All buttons blink 3 times: all volumes are reset. The menu exits automatically and machine returns to ready mode.
Step 1 of 4
Restoring quantity to factory settings
Preparing Cappuccino-Latte Macchiato
- NOTE: * The milk system has not been designed to work with vegetable milk. * For a perfect milk froth, use skimmed or semi-skimmed cow milk at refrigerator temperature (about 4° C). * The Rapid Cappuccino System does not work with water. * All milk will be used for the drink.

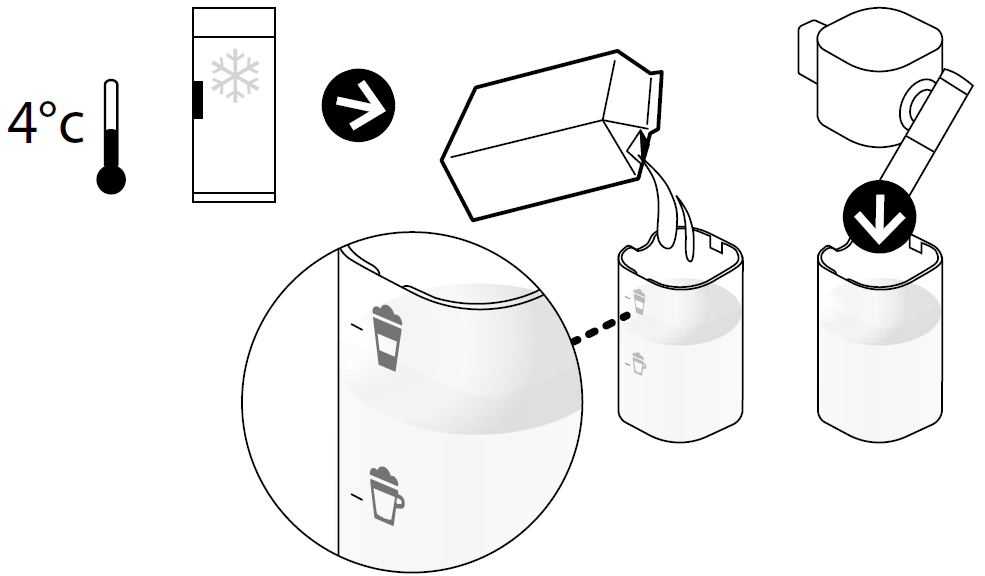

- Fill the milk container up to one of the two levels indicators: Cappuccino Latte Macchiato Close the milk container and connect the Rapid Cappuccino System to the machine. Machine heats up for approximately 15 seconds (blinking lights).
- Lift the lever completely and insert the capsule. Close the lever.

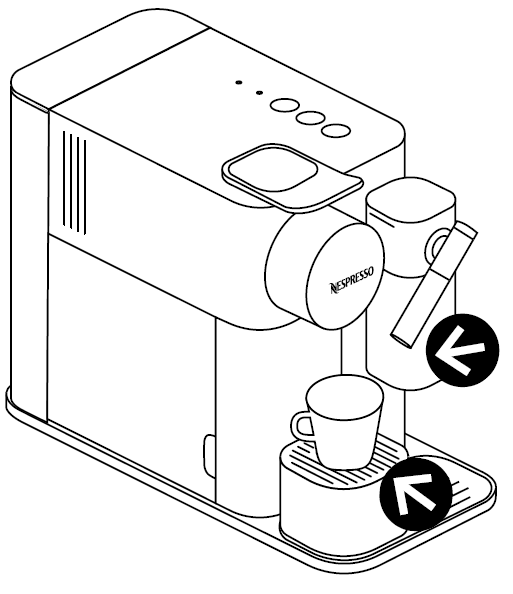

- Place a Cappuccino cup or a Latte Macchiato glass under the coffee outlet and adjust milk spout position by lifting it up to the right level.
- Press the milk button (all milk will be used for the drink) the preparation starts after a few seconds (first milk and then coffee) and will stop automatically.

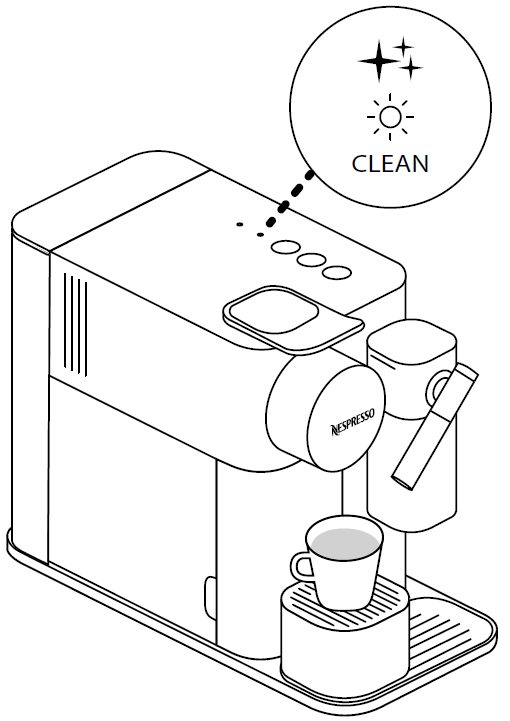

- At the end of the preparation, the clean alert illuminates orange to indicate it is necessary to clean the Rapid Cappuccino System.
- Lift and close the lever to eject the capsule into the used capsule container.
- After a period of non-use of maximum 30 minutes after your milk recipe preparation, disassemble the Rapid Cappuccino System, and clean all components in the upper side of your dishwasher. In case a dishwasher is not available, refer to section "Hand washing of Rapid Cappuccino System".
Step 1 of 8
Preparing Cappuccino-Latte Macchiato
Hand washing of Rapid Cappuccino System
- NOTE: When a dishwasher is not available, the Rapid Cappuccino System components can be washed by hand. The procedure must be performed after each us.
- Disassemble the Rapid Cappuccino System. Refer to section “Assembling / Disassembling of Rapid Cappuccino System”. Rinse away carefully any milk residue with hot potable water (40°C / 104°F).

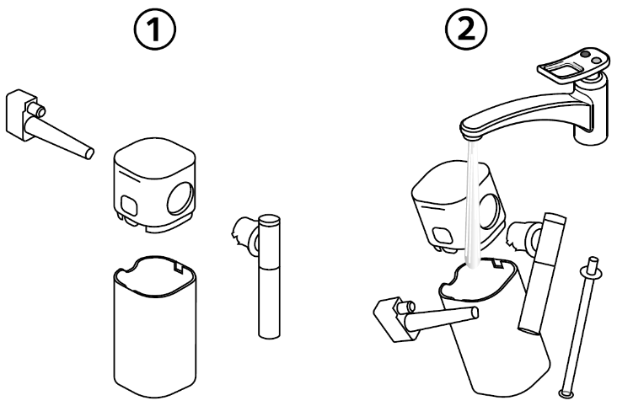

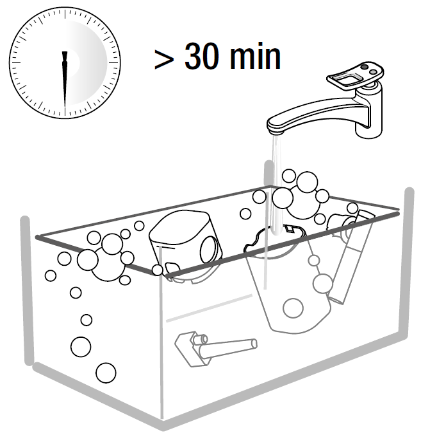

- Soak all components in with hot potable water °40)C / 104°F) together with mild / soft detergent for at least30 minutes and rinse thoroughly with hot potable water (40°C / 104°F). Do not use odor mild / soft detergents.

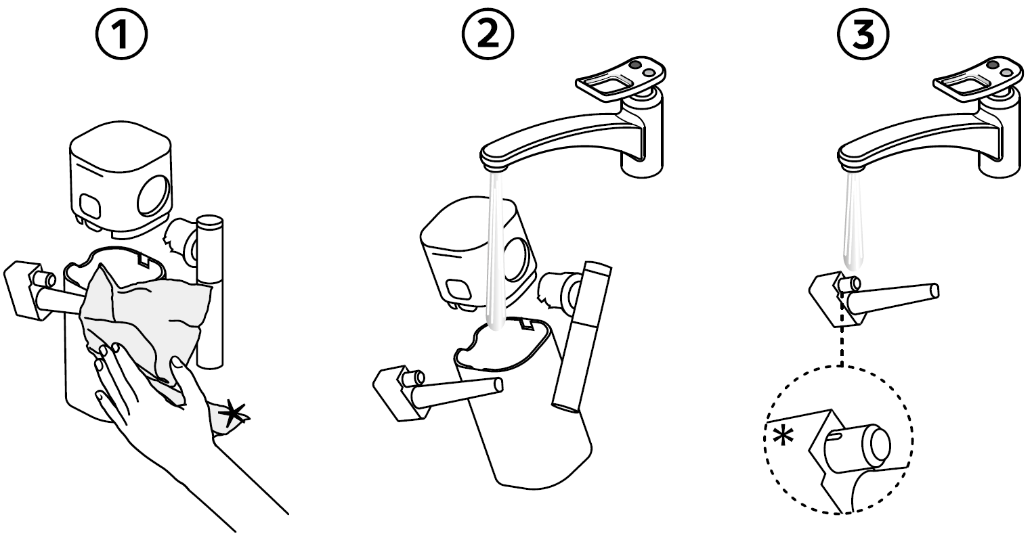

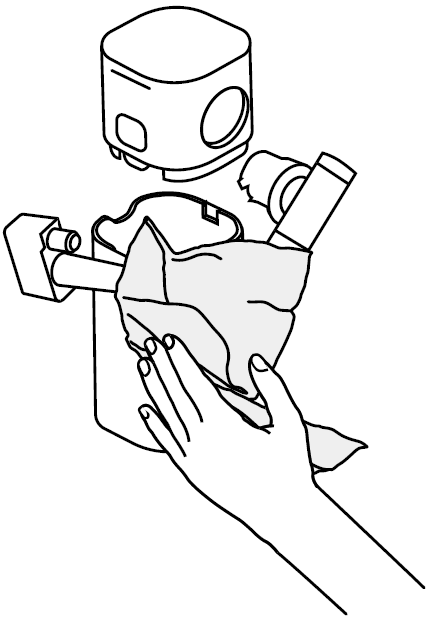

- Clean the interior of the milk tank with mild / soft detergent and rinse with hot potable water °40)C / 104°F). Do not use abrasive material that might damage the surface of the equipment. * Ensure air inlet is clean.
- Dry all parts with a fresh and clean towel, cloth or paper and reassemble.
Step 1 of 5
Hand washing of Rapid Cappuccino System
Assembling / Disassembling of Rapid Cappuccino System
- Remove the milk container by pressing the button on the side of the milk jug. Unplug the aspiration tube.
- Position the milk spout vertically to disassemble and to reassemble. Press the button on the side of milk jug to pull out the milk spout.
- Press the button on the side of milk jug and pull to unlock the rapid system connector.
Step 1 of 3
Assembling / Disassembling of Rapid Cappuccino System
No light indicator.
Check the mains, plug, voltage, and fuse. In case of problems, call the Nespresso Club.
No coffee, no water.
Water tank is empty. Fill water tank.
- Descale if necessary; see descaling section.
Coffee comes out very slowly.
- Flow speed depends on the coffee variety.
- Descale if necessary; see Descaling section.
No coffee, just water runs out (despite inserted capsule).
- In case of problems, send appliance to repair or call the Nespresso Club
Coffee is not hot enough.
- Preheat cup.
- Descale if necessary; see Descaling section
Capsule area is leaking (water in capsule container).
- Position capsule correctly. If leakages occur, call the Nespresso Club
Irregular blinking.
- Send appliance to repair or call the Nespresso Club
All buttons blink simultaneously for 10 seconds and then machine switches off automatically.
- Error alarm, machine needs repair. Send appliance to repair or call the Nespresso Club
All 3 buttons blinking fast 3 times and then machine goes back in ready mode.
- Water tank is empty.
Descaling and cleaning alert blink.
- Machine is in menu mode, press milk button for 3 seconds to exit menu mode or wait 30 seconds to exit automatically
Descaling alert shines orange.
- Machine triggers descaling alert according beverages consumption usage. Descale machine

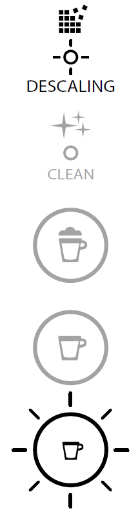

Descaling alert blinks orange and Espresso button steady light.
- Machine is in descaling mode. Press Espresso button to start descaling process
Clean alert shine orange.
- Disassemble the Rapid Cappuccino System and clean all components in the upper side of your dishwasher. In case a dishwasher is not available, refer to section "Hand washing of Rapid Cappuccino System"
All coffee buttons and all milk recipe buttons flash alternatively.
- Machine overheat, wait until machine cools down.
- Appliance will be blocked for approximately 10 minutes after emptying.
Lever cannot be closed completely.
- Empty capsule container. Make sure that no capsule is blocked inside the capsule container
Quality of Milk froth is not up to standard
- Use skimmed or semi-skimmed cow milk at refrigerator temperature (about 4° C(.
- Rinse after each milk preparations (see section "Hand Washing of Rapid Cappuccino System").
- Descale the machine.
- Do not use frozen milk.
- Ensure the air aspiration part is clean. Refer to the section "Hand washing of Rapid Cappuccino System
I cannot enter Menu mode
- Be sure to remove the milk jug.
- Be sure to press milk button for 3 seconds.
- Remove descaling pipe
Milk system does not start
- Fill up with minimum 30 ml of milk.
- The milk system does not work when filled with water.
- The milk system has not been designed to work with vegetable milk (rice, et)
Milk jug cannot be dismantled.
- Press the button on the side of the milk jug to remove the parts.
- Refer to section “Assembling / Disassembling of Rapid Cappuccino System”.
Turn off the machine.
- Press Espresso and Lungo button for 2 seconds
Sound when machine switches off.
- This sound indicates that the machine is now off.
