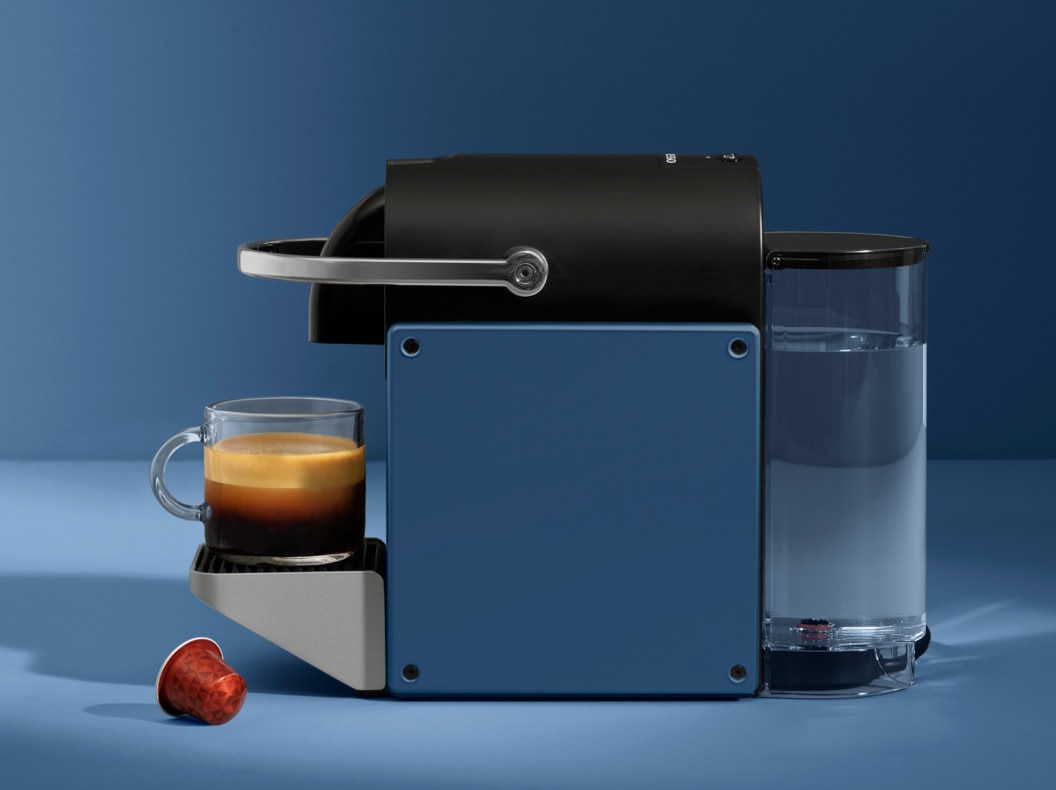

Pixie Dark Blue

Pixie allows the preparation of two coffee preparations accessible through 2 dedicated buttons: • Espresso (40ml) • Lungo (110ml)

Yes. Pixie is equipped with a foldable cup support to accommodate as well larger recipe glasses.

Component	Material
Outlet	ABS Terluran GP-22, black BK005335
Capsule Container	ABS Terluran GP-22, black BK005335
Water Tank	SAN Kibisan PN-107, transparent L125 FG
Drip Tray	ABS Terluran GP-22, black BK005335
Drip Plate	ABS Terluran GP-22, black BK005335
Housing	ABS Terluran GP-22, black BK005335
Drip Grid	ABS Terluran GP-22, black BK005335
Closing Handle	ZL0400 Zamak 3 (ZL3), ZnAl4
Water Tank Lid	ABS Polyman
Cup Support	Aluminium
Side Panel	Aluminium

Water tank: 0.7L
Used capsules container: 9-11 capsules

0.80m (except Japan where the length is 1.2m)

US: 120V, 60Hz, 1160W

Machine dimensions (WxDxH) : 116.6 x 324.2 x 234.6 mm
Machine weight: 2.48 kg

Pretty box dimensions (WxDxH): 192 x 372 x 293 mm
Pretty box weight (with machine): 3.005 kg

25 seconds

Yes. During heat-up you can press any beverage button while blinking. The coffee will then flow automatically when the machine is ready.

Espresso: 40ml, Lungo: 110ml

To program Espresso or Lungo volumes: simply press and hold the respective button and release it once the desired volume is served. LEDs will blink fast 3 times to confirm the new setting. Volume is now stored for the next preparations.

Yes. After 2 minutes of non-use, machine will shut off automatically.

Yes. In line with our company wide sustainability approach, we seek to minimize the amount of energy required to produce a cup of coffee. Since 2009, all new Nespresso machine ranges have all been equipped with an energy-saving mode, or an automatic power-off function. After 2 minutes of non-use the machine will shut off automatically

Energy consumption of the machine is A+.

Switzerland

Check the mains, plug, voltage, and fuse. In case of problems, call Nespresso.

Check if water tank is empty, descale if necessary.

Flow depends on the coffee variety, descale if necessary.

Preheat the cup. Make sure descaling is done correctly according to descaling alert and that you have set the water hardness according to your location.

Position the capsule correctly. If leakages still occur, call Nespresso.

Machine is in error, overheating or in an environment below 0°C / 32°F. Please wait for all buttons to stop blinking, this may take a few minutes. If buttons still blink after a few minutes, unplug and replug the machine. If problem persists, call Nespresso.

Send appliance to repair or call Nespresso.

In case of problems, call Nespresso or send appliance to repair.

Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild cleaning agent to clean the surface of the machine.

No, do not put any machine components in the dishwasher.

According to your consumption profile as well as the water hardness you have set in the machine (please refer to “Water hardness setting” section in the user manual), the machine will trigger a descaling alert visible on the top of the machine. To optimize descaling intervals and keep a machine well serviced for optimal in cup quality, we highly recommend setting the machine with the water hardness you have at your place.

To turn the machine on, press any button.
- Blinking Lights: heating up (approx. 30 seconds)
- Steady Lights: ready

Note that the descaling process takes approximately 15 minutes.

1. Lift and close the lever to eject any capsules in the used capsule container. Empty the drip tray, drip base and used capsule container. Fill the water tank with 0.5L of fresh potable water.
2. Pour 1 Nespresso descaling liquid sachet into the water tank.
3. Place a container (min. volume 0.6L) under the coffee outlet.
4. Switch the machine on. Blinking light: heating up. Steady light: ready
5. To enter the descaling mode, press the Espresso and Lungo buttons simultaneously for 3 seconds. They will start blinking.
6. Press the Lungo button and wait until the water tank is empty.
7. Refill the water tank with the used descaling solution collected in the container and press the Lungo button till water tank is empty.
8. Rinse the water tank. Fill with fresh potable water up to the max. level. Empty the 1L container and place it back. Empty the drip base.
9. When ready, press the Lungo button to rinse machine. Repeat twice. To exit the descaling mode, press both buttons simultaneously for one three seconds. The machine is now ready for use.

With the machine off, press and hold the Espresso button for 3 seconds. The Espresso button will blink to indicate the current setting (1x Single blinking: 2mins mode: 2x Double blinking: 30mins mode). To change this setting press the Espresso button: One time for auto power-off mode after 30 minutes. One more time for auto power-off mode after 2 minutes. To exit, press and hold the Lungo button.

Switch off the machine, press and hold the Lungo button for 5 seconds. Lights will blink fast 3x to confirm machine has been reset.

Turn the machine off by pressing the Espresso and Lungo button simultaneously (short press – less than 1 second).

No

No
